Technical specifications: MOVEO Communication Kit

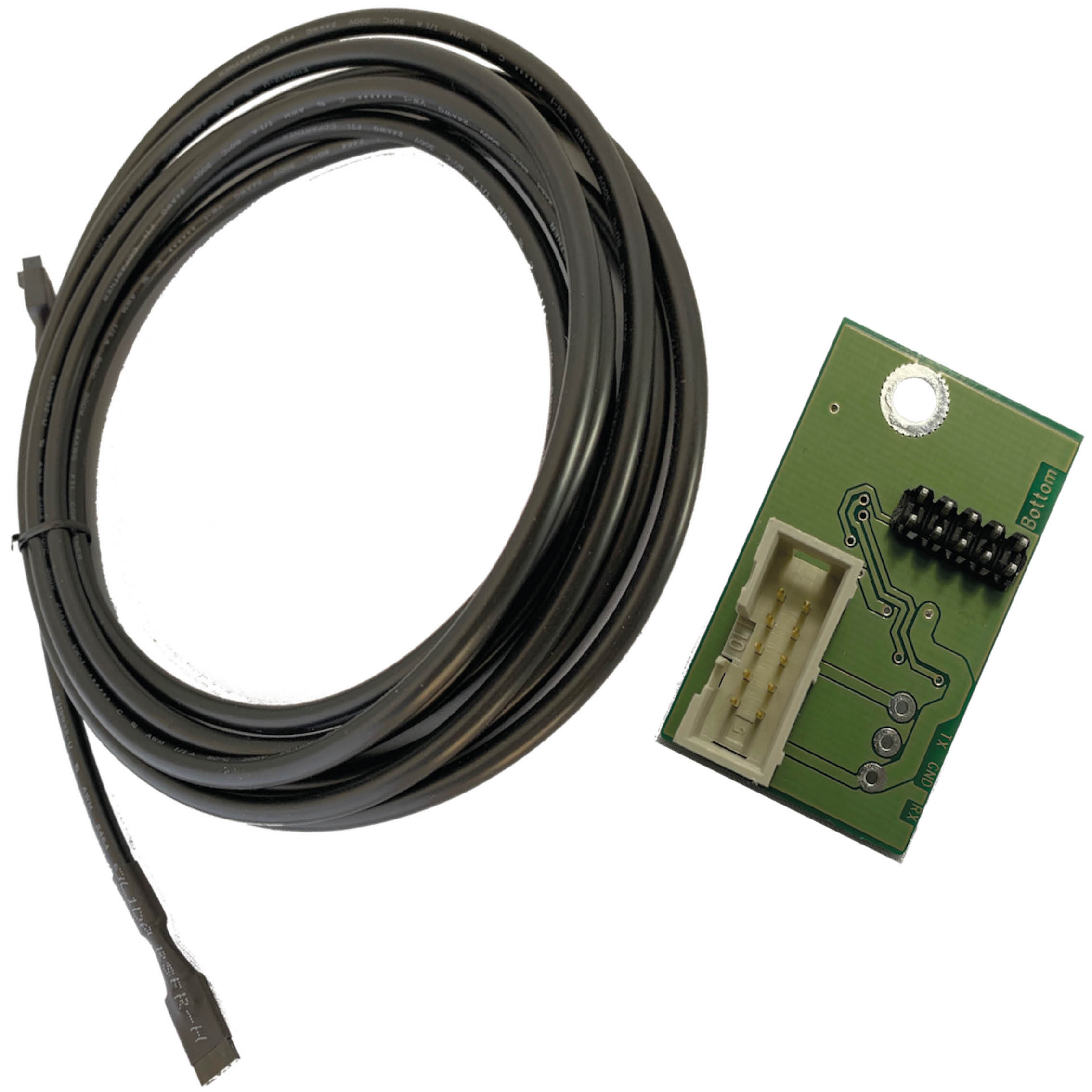

Card and cable for installation in the NOVA Series. Three meter cable for connection to Integra MOVEO / MOVEO XL. Used for communication between the NOVA series and Integra MOVEO / MOVEO XL.
Instruction no: 350-198
Connection of RS-232 communication
After mounting, connect RS-232 communication to J1.

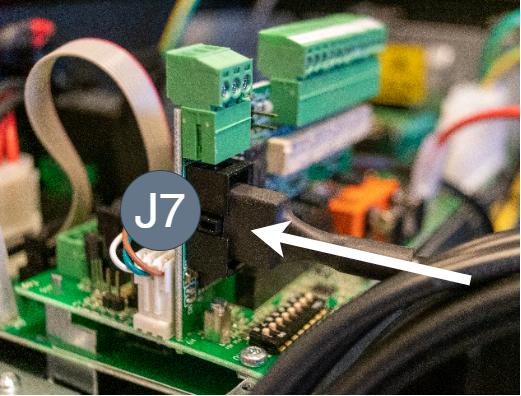

PRO2 V2 on alarm card: J7
PRO3 on RS-232 card: J1
For loading from battery backup to the parent system, see its documentation.
 |
Mounting on PRO3
The card must be mounted on JU6 on the PRO3 card.
The battery backup should be de-energized during installation.
Press the card down and screw it on.

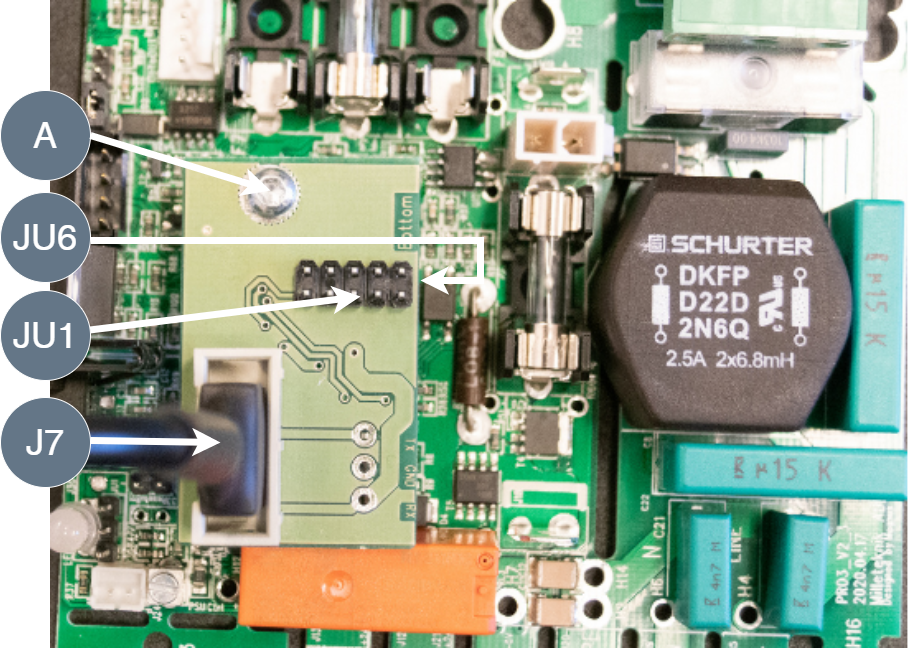

Mounting on PRO3
How to mount the card on the motherboard, PRO3.
Important
Battery backup should be dsiconnected to main when installing and connecting the board.
Press the card down and screw it on.

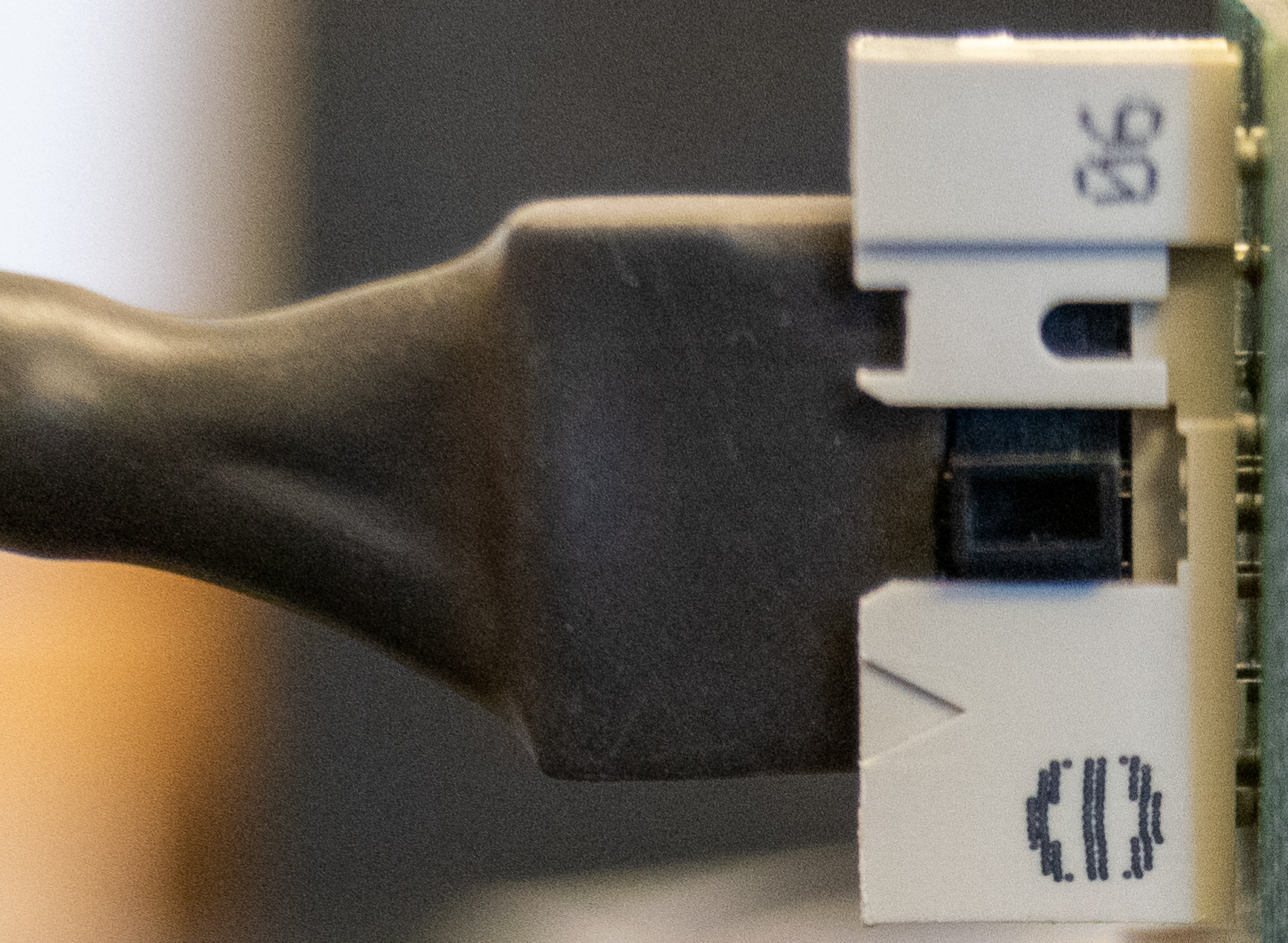

Connect cable to J1.
 |
Marking | Explanation |
|---|---|
J7 | Connection for cable |
JU1 | Pin strip on the RS-232 card |
JU6 | Connection pin strip on motherboard |
A | Screw. |
About RS-232
RS-232 is a serial data bus for data transfer to overclocked system. By connecting the RS-232 to the motherboard, it is possible to read information about the battery backup, batteries and their status via a higher-level system.
How do I know which motherboard the battery backup has?

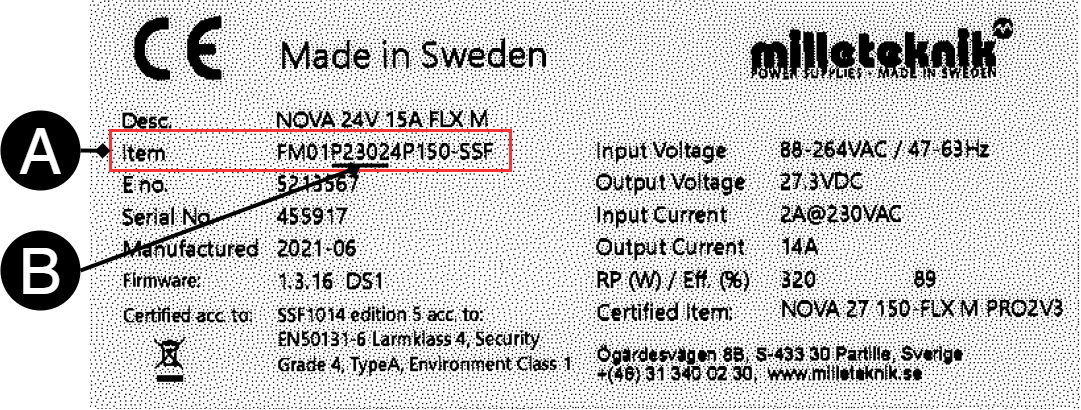

On the battery backup there is a CE label, on the second line it says Item (article number) and in the fourth character is a P. P together with the following three numbers indicates which motherboard the battery backup has.
Letter | Item number (A) | Motherboard |
|---|---|---|
B | xxxxP200xxxxxx | PRO2 |
B | xxxxP230xxxxxx | PRO2 v4 |
B | xxxxP300xxxxxx | PRO3 |
Missing item number is the unit of a model manufactured before 2020-04. | ||
Circuit board RS-232 - Technical Data
Product description | RS-232 is an optional card that enables communication to the parent system via RS-232 |
Item number: | A-CA0024RS232KIT01 |
Short name: | RS-232 |
Version: | 1.0 |
Dimensions, circuit board: | 45mm x 22mm |
Own consumption | N/A |
The product fits in | Battery backup with PRO3 card. |
Cable is connected from battery backup to: | Integra MOVEO / MOVEO XL |
Measure | 42 x 25 mm |
Indication | No |
Cable: | RS-323, length 2 meters. For connection to Integra. |
Color of cable: | Black. |
Cable fits: | RS-232 card (for PRO3) and in alarm card on PRO2 V3. |
Note
Black cable fits battery backups that have PRO3 and PRO2 v3.
Battery backups that have PRO2 as a motherboard must have a gray cable. (Available via Bravis, article number 44289909).
About translation of this document
User manual and other documents are in the original language in Swedish. Other languages are machine translated and not reviewed, errors may occur.
