Technical specifications
ECO mains failure alarm card is an alarm card for monitoring mains failure. The alarm card can be inserted into 24 V battery backups ECO M and ECO FLX S.
Installation and connection
Mount the card on the motherboard in the battery backup.
Connect the mains.
Push the card down onto the motherboard in the battery backup.

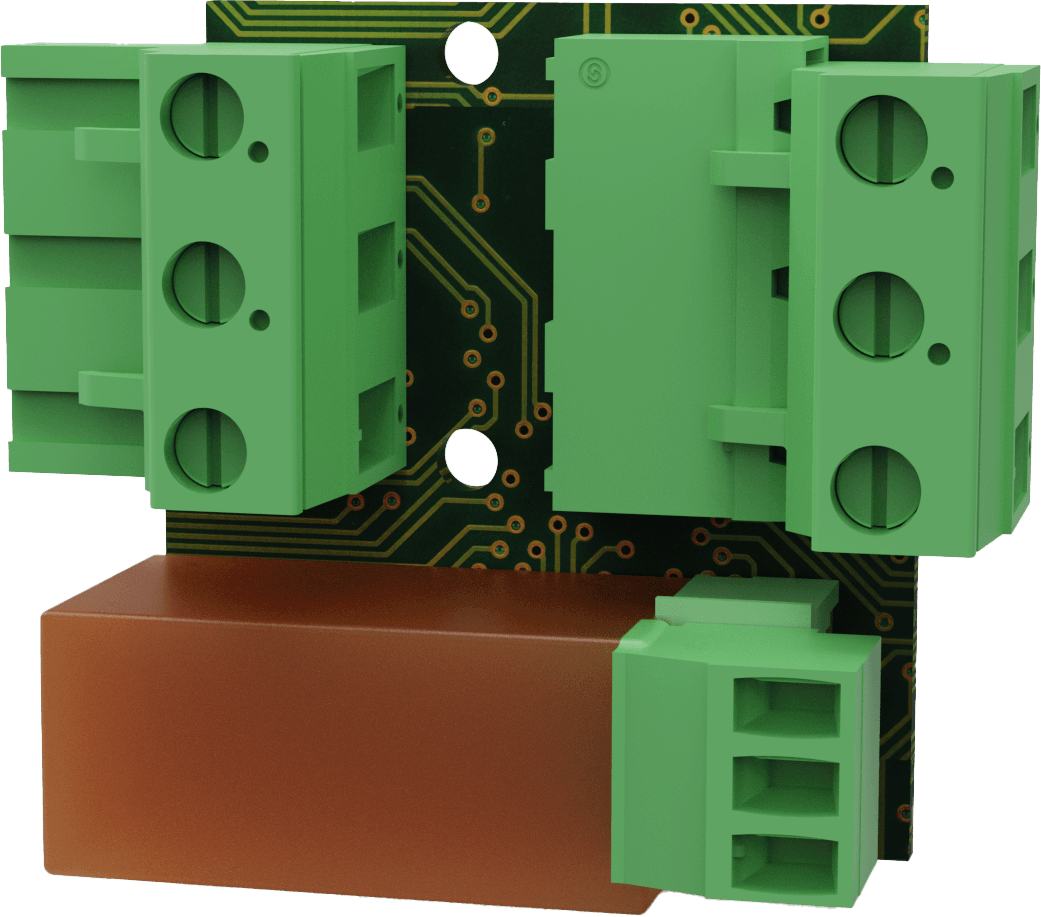

Connect Phase, Neutral and Ground as the picture shows.
No | Explanation |
|---|---|
1 | Terminal that meets motherboard in battery backup, protective earth (PE), Neutral (N), Phase (F). |
2 | Terminal for incoming mains, protective earth (PE), Neutral (N), Phase (F). |
3 | Alarm output, NO/CO/NC. |
Warning
Do not cross cables - risk of equipment damage.
Technical data
Item number | A-AL1224ECO01 card |
Product description | Alarm card for ECO M and ECO FLX S. Alarm on changing relay. |
Measure | 21 x 55 x 42 mm |
Own energy consumption | N/A |
Tension, in | 27.3V DC |
Alarm output: | Mains failure NC/CO/NO |
Technical data | |
|---|---|
Recommended environment | Environmental class 1, Indoor, 20% ~ 90% relative humidity |
The products meet the requirements according to | EMC Directive 2014/30EU, Low Voltage directive: 2014/35/EU CE directive according to 765/2008, Emission: EN61000-6-:2001, EN55022:1998:-A1:2000, A2:2003 Class B, EN61000-3 -2:2001. Immunity: EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11. |
Guarantee | 2 years |
User manual article number: 350-243
This document is subject to change without notice.
All information is published subject to typographical errors.
About translation of this document
User manual and other documents are in the original language in Swedish. Other languages are machine translated and not reviewed, errors may occur.
