About PoE from Milleteknik

The series is designed to power PoE devices such as access systems, surveillance cameras and other equipment that can be operated with Power over Ethernet. Through its function as a battery backup, the PoE device can continue to be powered in the event of a power failure.

PoE switch 4p M, PoE switch 4p FLX S and PoE switch 4p FLX M are for security systems where a, reliable power supply with battery backup and PoE function is needed. Our PoE have something we call "controlled charging", which is a safety function that means that batteries are not charged with more than 0.5 A. By controlling the charging of batteries, the lifespan of batteries is significantly extended.

How PoE powers devices connected to the power supply


PoE can power, for example, surveillance cameras.

Connect external devices to be powered via PoE in ports 1-4.

Connect other devices that do not need to be operated with PoE in LAN1-2.

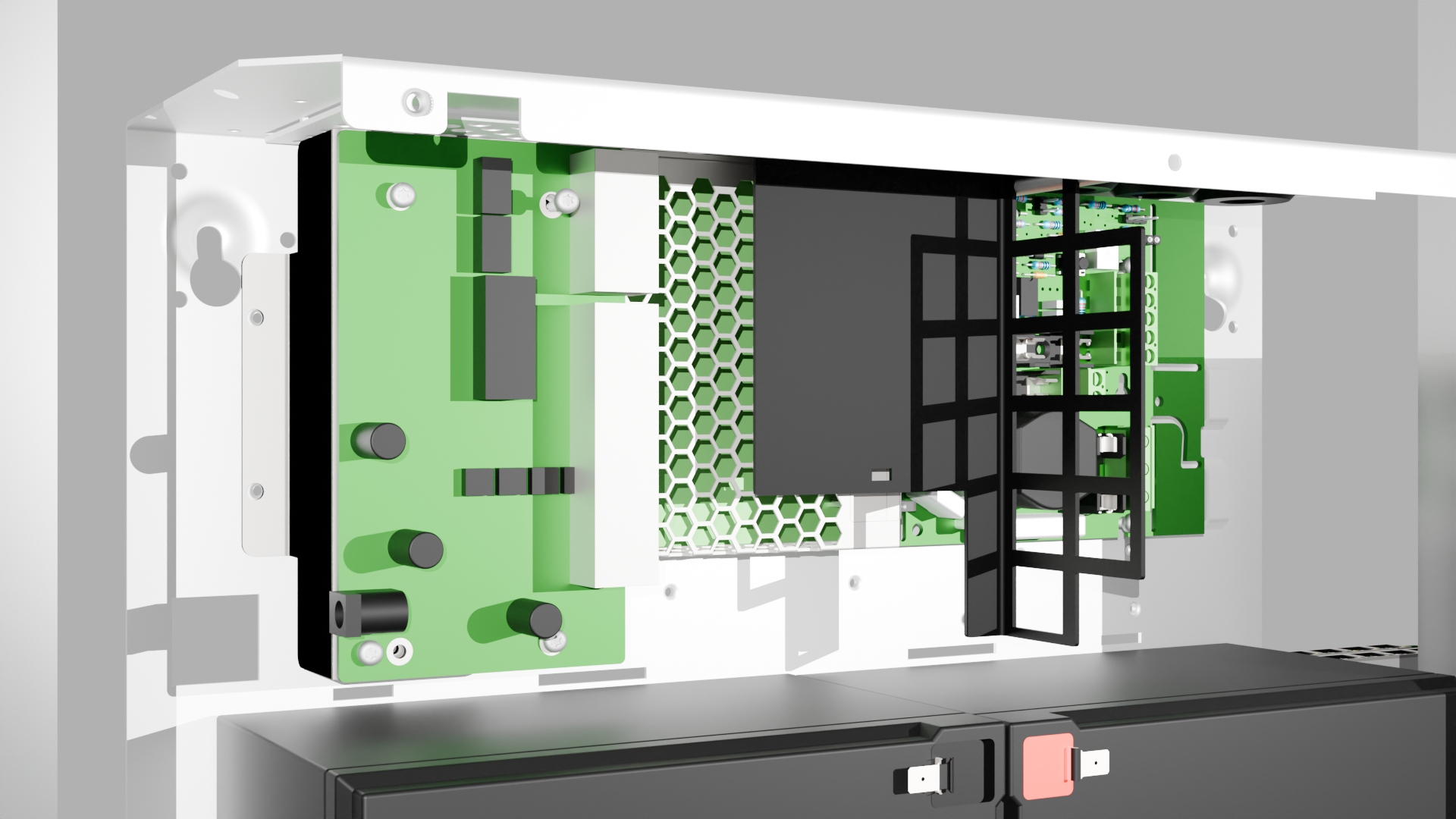

Component overview PoE M

Table 1. Component overview

Symbol

Explanation

A

Casing in powder-coated sheet metal.

B

Space for batteries.

C

PoE switch.

D

Power supply unit.

E

[sv] Fäste för Keystone moduler.

F

Motherboard.

G

Cable entries.



Keystone

A plate for keystone modules makes the installation of PoE devices easier.


Wall mounting

Use four screws suitable for the wall to set up the cabinet.

The distance between the screw head and the wall should be 1.5–2 mm.

Preferably leave a 100 mm air gap around the unit.


Connection of batteries

Battery wiring is mounted on the circuit board upon delivery. Pictures below only show how to connect wiring.

  1. Place the batteries in the cabinet with the battery terminals facing outwards, against the cabinet door.

  2. Connect the battery cable. Red cable on plus and black cable on minus.

  • If possible, disconnect mains voltage when replacing the battery.

Figure 1. Wiring diagram for batteries in battery backup
Wiring diagram for batteries in battery backup

Connect the terminals correctly so that you do not damage the equipment.



Motherboard - description

See technical data for more information.

Figure 2. CEO
CEO

The motherboard controls the device and distributes power. See technical data for more information.



Table 2. Circuit board overview, explanation

No

On the circuit board

Explanation

1

J24

Connection for control of power supply.

2

D6

LED 1.

3

J11

connection external LED.

4

D11

LED 2.

5

JU2

Control of alarm threshold.

6

JU3

Connection to external alarm.

7

J6

Connection to buzzer.

8

P2:3-5

Connection to sum alarm.

9

P2:1-2

Load output

10

P1:1-3

Connection to the mains.



Connect the mains to the motherboard (PCB)

Connect mains

Pull wiring through the cable entry on the cabinet.

If possible, secure the mains cable with cable ties where possible.

Electrical network cabling shall be kept separate from other cabling to avoid EMC interference.

Figure 3. Connect the mains to the motherboard
Connect the mains to the motherboard

Connect the mains cable to the terminal before it is put back on the motherboard. Secure F and N with cable ties for electrical safety.



Table 3. Electrical network connections

Letter

Explanation

F

Phase

N

Neutral

PE

Protective earth



Electrical mains connection 230 V AC on circuit board

Check that the marking on the circuit board matches the cable arrangement on the terminal block.

Connect load

Max current

The maximum current must not be exceeded. Max current is indicated on nameplate on the device.

Table 4. Load connections

Circuit board number

Explanation

P2: 1

Connection for load 1 +

P2: 2

Connection for load 1 -



Control alarm limit

Alarm for low battery voltage in battery operation can be controlled.

By jumpering JU2, the limit for when the unit should give an alarm can be lowered.

Alarms are given when the battery voltage in battery drops below the limit.

Commissioning - how to start the unit

The unit works normally when the indicator LED on the outside of the cabinet door lights up with a solid green light. See front panel for other status indications.

It may take up to 72 hours before the batteries are fully charged.

Status indications

Solid green light: Normal operation.

Solid yellow glow: Low battery voltage.

Solid red light: Lights up red when the following three conditions are met (in order): 1. The device goes into battery operation. 2. Fuse trips in battery operation. 3. Batteries have dropped below the alarm limit.


Maintenance

The system with the exception of batteries is maintenance-free when installed in an indoor environment.

battery change

  • If possible, disconnect mains (voltage) when replacing the battery.

  • Disconnect battery cables. Note how battery cables are mounted before removing them.

  • Remove battery fuse between batteries.

  • Insert and fasten the new batteries.

  • Connect the battery cables in the same way as before.

  • Connect battery fuse between batteries.

  • Switch on mains voltage. The indicator LED may not be green (up to 72 hours), until the batteries are charged.

  • Test the system by briefly disconnecting the mains voltage, (= the load is driven by the batteries), and then switch on the mains voltage again.

FAQ - PoE

Product data sheet

PoE

Figure 4. PoE Switch 4p M
PoE Switch 4p M

PoE switch with 4 PoE ports.



Technical specifications

These technical specifications are subject to change without notice.

Name, article number and e-number

Name

Article number

E-number (SV)

PoE switch 4p M

ME01C10048P02504PU

51 719 51

More information


About PoE from Milleteknik

The series is designed to power PoE devices such as access systems, surveillance cameras and other equipment that can be operated with Power over Ethernet. Through its function as a battery backup, the PoE device can continue to be powered in the event of a power failure.

PoE switch 4p M, PoE switch 4p FLX S and PoE switch 4p FLX M are for security systems where a, reliable power supply with battery backup and PoE function is needed. Our PoE have something we call "controlled charging", which is a safety function that means that batteries are not charged with more than 0.5 A. By controlling the charging of batteries, the lifespan of batteries is significantly extended.

PoE Switch 4p M

Power supply with backup power to power PoE devices such as surveillance cameras and other PoE powered devices. The power supply has batteries that keep powering on when the power grid goes down. Long life, energy efficient and support is available if something goes wrong, now or in 10 years.

Power over Ethernet from Milleteknik

  • PoE for security applications with the need for power supply with backup power.

  • Proven, reliable technology.

  • For fixed installation.

  • Swedish made.

Limitations

Important

Note that 802.3at type2 is not supported, as the PoE card lacks a handshake function for type 2. Read more.

The product is tested and verified against Axema access systems and Dinbox access systems and is therefore recommended for use only with these systems. The product is currently not recommended for other products that have an af/at handshake procedure. The product deviates from standard IEEE 802.3af per port and IEEE 802.3at as the power is modified to be used together with Axema passer system and Dinbox passer system, which leads to shortcomings, (PoE-connected product does not start), against products that require handshake.

Areas of use

  • Power supply for camera surveillance and other applications that can be powered by PoE.

  • Security applications powered by PoE that need backup power in the event of a power outage.

Alarm

The device alarms for:

Low battery voltage, low battery voltage in the event of a broken fuse on the load output.

Fixed installation

The product is intended for fixed installation. The battery backup must be installed by a qualified installer.

Battery types

The ECO series can be used with AGM batteries. Do not mix types of batteries, brand or used and new batteries.

Regulations and certifications

Requirements that the product meets

EMC:

EMC Directive 2014 / 30EU

Electricity:

Low voltage directive: 2014/35 / EU

PoE:

IEEE 802.3af, IEEE 802.3at/30.8 W Note that 802.3at type2 is not supported, as the PoE card lacks a handshake function for type 2.

CE:

CE directive according to: 765/2008

Emission:

EN61000-6-: 2001 EN55022: 1998: -A1: 2000, A2: 2003 Klass B, EN61000-3-2: 2001

EN55022 (CISPR22), GB9254 Class B, EN55014, EN61000-3-2Class A( 75% Load),EN61000-3-3

soptunna_atervinning.ai

Expected operating time in the event of a power failure ( with new batteries)

PoE

Battery

Power 15.4 W

Power 30.8 W

Power 62 W

Power 90 W

Power 100 W

Power 120 W

Power 180W

Power 240 W

PoE switch 4p M (48 V)

4 pcs 7.2 Ah

18 h 30 min.

8 h 30 min.

3 h 45 min.

-

2 h

1 h 45 min.

-

-

Circuit boards - Technical data

Technical data: CEO 3

Table 5. CEO3 V 2.5

Info

Explanation

Article title

CEO3

Product description

CEO 3 is the next generation circuit board for simpler battery backups. Advanced functions that were not previously possible in simpler battery backups are now available as standard. CEO 3 is a reliable heart in simpler battery backups with fewer components than before, which reduces the environmental impact.

Measure

120 x 55 mm x 52 mm

Own consumption

32 mA

Fuse on output

F1: T2.5A, mains fuse.

F6: T5A, load fuse +, P2:1.

F7: T16A, battery fuse.

Outputs

One cargo outlet, fused.

Insurance

Load output: + secured.

Alarm via

Triggered load securing, potential-free shifting. Conclusion CO / NO. PRO1: Via alarm terminal J13 (NC-CO). PRO2: Via alarm terminal J13 (NC-CO). PRO2 v3: Via J11 and J12 to motherboard on to the parent system. PRO 3: Via J11 and J12 to motherboard on to the parent system.

Protection against:

Deep discharge, short circuit, overload and overvoltage.



Table 6. Indications

Indicator diode

Green

Orange

RED

(2) / D2

OK

Low battery voltage / fuse fault.

Low battery voltage with broken fuse on output.

(4) / D11

-

Overvoltage.

Batteries incorrectly connected.



Table 7. Alarm limits

Alarm limit at low battery voltage

48 V

(5) / JU2 with jumper

47 V

(5) / JU 2 without jumper

51 V

The unit is delivered without a jumper on (8) / JU2



Table 8. sum alarm

sum alarm

(8) P2: 3

NO

(8) P2: 4

CO

(8) P2: 5

NC



Technical data: PoE card

Limitations

Important

Note that 802.3at type2 is not supported, as the PoE card lacks a handshake function for type 2. Read more.

The product is tested and verified against Axema access systems and Dinbox access systems and is therefore recommended for use only with these systems. The product is currently not recommended for other products that have an af/at handshake procedure. The product deviates from standard IEEE 802.3af per port and IEEE 802.3at as the power is modified to be used together with Axema passer system and Dinbox passer system, which leads to shortcomings, (PoE-connected product does not start), against products that require handshake.

Product

Number of PoE / LAN ports

Max power per port

PoE, continuous power

Ethernet type

Network ports

Interface

Functions

Type, injector and switch

PoE switch 4p M

4/2

30,8 @ 54,6 V DC

125 W

Fast Ethernet Mbit PoE switch

10 / 100 PoE

1000Base-T RJ-45

Auto-negotiation, Auto-uplink (auto MDI/MDI-X)

Unmanaged. There is no software interface to control the switch.

Power supply

Power supply - Technical Data LRS-150-48

Info

Explanation

Output voltage

54.6 V

Output current

0 A - 3.3 A

Output voltage, ripple

200 mVp-p

Overvoltage

55.2 V - 64.8 V

Voltage recharge, ripple / current limitation

Less than 0.6 Vp-p

Efficiency

90%

Current limitation

110% - 140%

Constant voltage

+/- 0.5%

Regulatory accuracy

* / - 1.0%

Input current (230 V)

1.7 A

Mains voltage frequency

47 Hz- 63 Hz

Mains voltage

230 V AC - 240 V AC

Brand effect

158.4 W

Temperature range

-30°C - +70°C

Humidity range

20% - 90% RH non-condensed

Technical data enclosures

Enclosures - Technical Data M

Info

Explanation

Name

M

Enclosure class

IP 20

Measure

Height: 242 mm, width: 350 mm, depth: 150 mm.

Height units

-

Mounting

Wall

Ambient temperature

+ 5 ° C - + 40 ° C. For best battery life: + 15 ° C to + 25 ° C.

Environment

Environmental class 1, indoors. 20% ~ 90% relative humidity

Material

Powder coated sheet

Color

White

Cable entries, number

5

Batteries that fit

2 pcs 12 V 7.2 Ah or

2 pcs 12 V 14 Ah.

4 pcs 12 V 7.2 Ah

Link to the latest information

Products and software are subject to updates, you will always find the latest information on our website.

PoE

Warranty, support, country of manufacture and country of origin

Warranty

The product has a two-year warranty, from the date of purchase (unless otherwise agreed). Support during the warranty period can be reached at support@milleteknik.se or telephone, +46 31-34 00 230. Compensation for travel and / or working hours in connection with locating faults, installing repaired or replaced goods is not included in the warranty. Contact Milleteknik for more information. Milleteknik provides support during the product's lifetime, however, no later than 10 years after the date of purchase. Switching to an equivalent product may occur if Milleteknik deems that repair is not possible. Support costs may (at Milleteknik's discretion) occour after the warranty period has expired.

Support

Do you need help with installation or connections? Our support phone is available: Monday-Thursday 08: 00-16: 00 and Fridays 08: 00-15: 00. Telephone support is closed between 11: 30-13: 15.

You will find answers to many questions at: www.milleteknik.se/support

Phone: +46 31-340 02 30

Support is open: Monday-Thursday 08:00-16:00, Fridays 08:00-15:00. Closed 11:30-13:15.

Spare parts

Contacted support for questions about spare parts.

Support after the warranty period

Milleteknik provides support during the life of the product, but no longer than 10 years after the date of purchase. Replacement for an equivalent product may occur if the manufacturer deems that repair is not possible. Costs for support and replacement are added after the warranty period has expired.

Questions about product performance?

Contact sales: 46 31-340 02 30, e-mail: sales@milleteknik.se

Country of manufacture

Country of manufacture / country of origin is Sweden. For more information, contact your seller.

Designed and produced by: Milleteknik AB

Designed and produced by Milleteknik AB

Batteries - recommended, not included

Batteries are not included they are sold separately

Batteries are sold separately.

7.2 Ah, 12 V AGM battery

Fits in

Number of batteries

PoE switch 4p M

4

Battery type

V

Ah

Maintenance-free AGM, lead-acid battery.

12 V

7.2 Ah

Table 9. 10+ Design life * battery

Article number

E-number

Article name

Terminal

Measure. Height width depth

Weight per piece

Make

MT113-12V07-01

5230536

UPLUS 12V 7.2Ah 10+ Design Life battery

Flat pin 6.3 mm

151 x 65 x 100 mm.

2.4 kg

UPLUS



Product life cycle, environmental impact and recycling

The product is designed and constructed for a long service life, which reduces the environmental impact. The product's service life depends on, among other things, environmental factors, mainly ambient temperature, unforeseen load on components such as lightning strikes, external damage, handling errors, and more. Products are recycled by being handed over to the nearest recycling station or sent back to the manufacturer. Contact your distributor for more information. Costs that arise in connection with recycling are not reimbursed.

soptunna_atervinning.ai

Address and contact details

Milleteknik AB

Ögärdesvägen 8 B

S-433 30 Partille

Sweden

+46 31 340 02 30

info@milleteknik.se

www.milleteknik.com



[1] Translations in languages other than Swedish are only indicative and have not been verified. Translation must always be checked against the Swedish original to ensure correct information.
