About
ECO 24V 1A Mini is a flexible battery backup for use in controlling loads that require a simple and reliable battery backup. Two 1.2 Ah batteries are included.[1].
Name, article number and e-number
Name | Article number | E-number (SV) |
|---|---|---|
ECO 24V 1A Mini | MI01C10324P010B01 | 52 137 46 |
Enclosures
Mounting
Use the appropriate screw for mounting on the wall, Screw for mounting on the wall is not included.
Wall mounting
Distance between screw head and wall should be 1.5–2 mm. Preferably leave a 100 mm air gap around the unit.
Component overviews

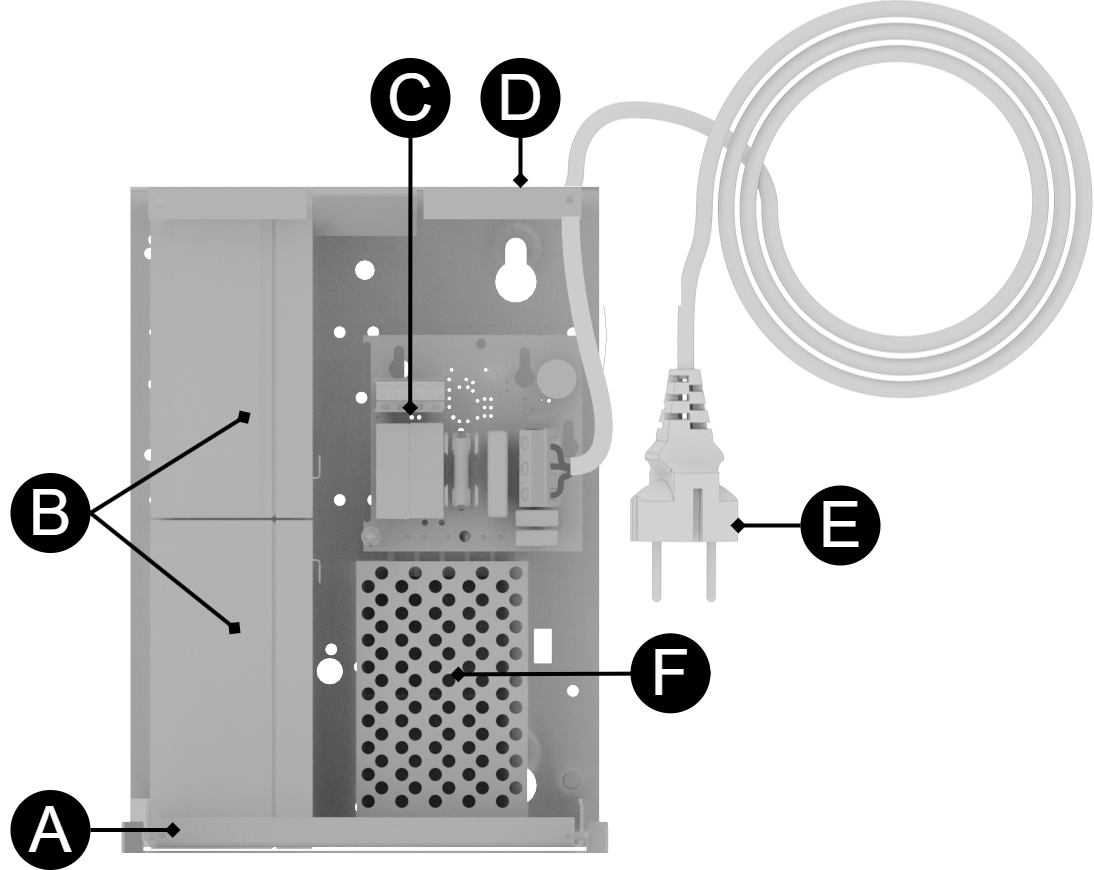

Component overview ECO 24V 1A S
Letter | Explanation |
|---|---|
A | Cabinet in powder-coated sheet metal. |
B | Batteries. |
C | Motherboard. |
D | Cable entries. |
E | 230 V cable with plug. |
F | Power supply. |
Technical data: CEO 3
Nr | In short | Explanation |
|---|---|---|
1 | P1: 1-3 | Connection to mains, 230 V. |
2 | F6 | Load securing: T2A. |
3 | D1 | Indicator diode, see table below. |
4 | P2: 3-4 | Connect remote control of load output. Shipped assembled with jumper. If the jumper is removed, the load output, see 5 below, is switched off (becomes de-energized) |
5 | P2: 1-2 | Connect load. |
6 | JU2 | JU2 with jumper = 24.0 V. JU 2 without jumper = 26.5 V. The unit is delivered without jumper on JU2. |
7 | JU1 | JU1 with jumper = alarm on buzzer. The unit is delivered with jumper on JU1. The device is delivered without a buzzer. JU1 without jumper = No alarm on buzzer. |
Nr | In short | Indicator diode | Buzzer | Explanation |
|---|---|---|---|---|
3 | D1 | Green | No | OK - normal operation. |
Yellow / orange | Yes if JU1 has a jumper. | Power failure / low battery voltage. Controlled via jumper on JU2. | ||
RED | Yes if JU1 has a jumper. | Triggered load securing |
Connect batteries ECO Mini
The unit comes with batteries.
Attach battery fuse between batteries.
About this information
All information is published subject to possible errors. This document is updated without notice. |
About translation of this document
User manual and other documents are in the original language in Swedish. Other languages may be machine translated and/or not reviewed, errors may occur.
[1] Batteries are not covered by the product's warranty.
