About

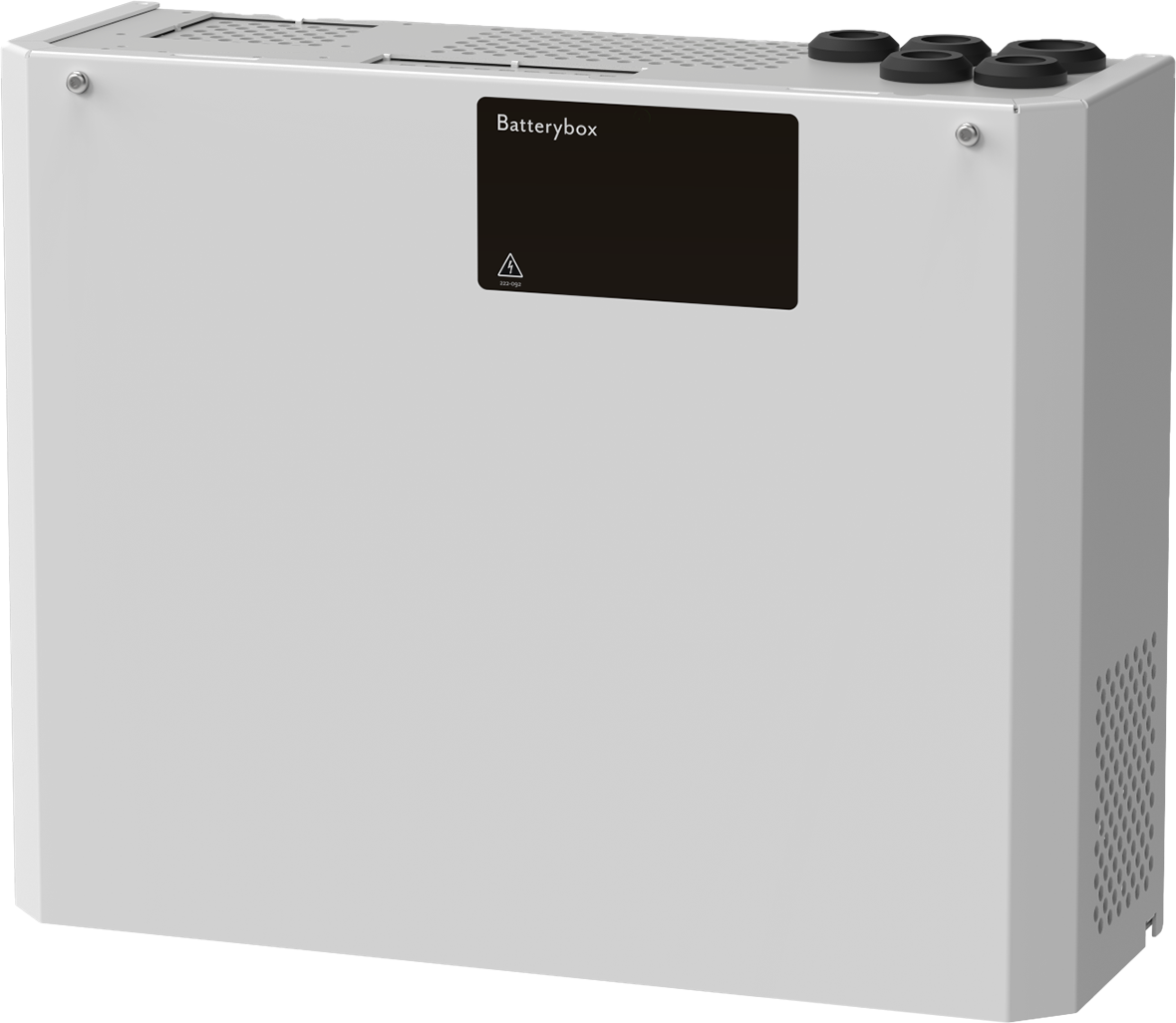

Battery Box 24V M is a battery box to extend the operating time of ECO 24V 5A M or ECO 24V 10A M.

Commissioning

This unit should be installed on a wall, indoors and the temperature should be 15 - 30 ° C. IP class 20. Mains voltage must be disconnected during installation. Only authorized persons should install and take care of the maintenance.

Connection of batteries in battery box

  1. Slide the battery in from the side with the battery terminals facing the short side. Connect red cable to + (plus) and black cable to - (minus).

  2. Disconnect battery fuse on battery backup or disconnect mains voltage.

  3. Insert batteries starting from the bottom. Only use new batteries during installation and battery replacement.

  4. Connect fuses on batteries.

  5. Connect cables from battery box to battery backup. Cables are routed on the back and in through cable entries on the top of the battery backup.

  6. Connect one of the terminals (on battery in battery backup) with the double connector, see picture.

  7. Replace the battery fuse in the battery backup or switch on the mains voltage.


Commissioning of battery backup with battery box

After connecting the wiring, follow the instructions for commissioning battery backup.

Technical data

Battery Box 24V M

Number of batteries

4 pieces.

Battery type

14 Ah 12 V batteries.

Battery replacement

Always use new batteries when replacing the battery. Do not mix new and used batteries.

Country of manufacture

Sweden

Support

031- 34 00 230, support@milleteknik.se, www.milleteknik.se
