MOVEO 24V 10A FLX L

Article Number: FL01P30024P100-BA1
E-number: 52 137 51

SSF1014 Approved battery backup 24V 10A

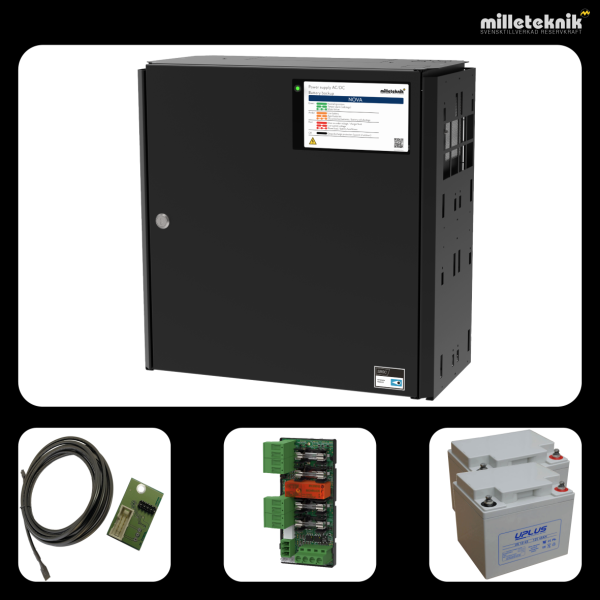

The package includes:
Power supply: NOVA 24V 10A FLX L
Load card: 2+2 Output module
Communication card: MOVEO Communication kit
Batteries: 2 pcs. 45 Ah batteries

Primary switched battery backup that is SSF 1014 certified and designed to power security systems such as access systems and alarm systems in properties. It has a maximum output of 10A and an input voltage of 230V AC. The unit is intended for fixed installation and can be mounted both on a wall and in a 19″ rack. The battery backup is certified for use in security facilities that must comply with SSF 1014, and it supports alarm classes from 1 to 4.

The unit has room for two 45 Ah batteries, which are included in this configuration, and these ensure that the system continues operation in the event of a power failure. With a battery fuse of 16A, the system can handle varying loads depending on how often connected devices such as door locks are activated. The reserve operating time depends on the connected load.

This package also includes the Moveo kit for communication between the NOVA series and Moveo/Moveo XL, which enables smooth integration with these systems. Also included is a 2+2 Output Module board that offers four load outputs, where two of the outputs are prioritized and continue to operate in the event of a power failure, while the other two cut the voltage in the event of an alarm or interruption. The unit is energy efficient and designed for a long life, which reduces the environmental impact.

The package is delivered in two parcels.

Recommended environment

Security class (IP-klass)

Recommended mounting

Wall or 19" rack

Height units

10RU

Dimensioner (Höjd x Bredd x Djup)

444 x 437 x 212 mm

Number of cable ports

4, possible to have outlet holes on rear

Color

Built in cooling fan

Yes

Voltage in (V)

230 – 240 VAC, 50-60 Hz

Current out

27.3 VDC (24 V)

Max current

Available charging current (A)

Dependent upon power outlet, though max 6 A

Rated power

240 W

Ripple i normal mode

120 mVp-p

Efficiency

heat generation at 50% / 80% of rated power

17 W / 27 W

Current in (A)

2 A

Number of unsecured (load-) outputs

Type of fuse / ouput

2 15A flat pin fuses

Deep discharge of battery occurs at

21 VDC

Battery type

12 V maintenance free AGM battery

Recommended battery

2 UPLUS 12 V, 45 Ah batteries

Batteries included

Yes

Protection against

, , , ,

Alarm via

Changeover relay, RS232

Alarm functions

Battery disconnected (10 sec), Charger error overvoltage, Charger error undervoltage, Delayed power grid failure alarm (10 sec), External alarm via pin list (optional card), Fuse failure (buzzer alarm, alarm output 2), Low system voltage, Old battery, Tampering

Support for communication via

RS-232

Information via protocol

Alarm for high / low temperature, Alarm from temperature sensor, All standard alarm functions, Fan error, Highest and lowest battery voltage since start, Highest and lowest temperature since start, Minimum / Max / Average temperature the latest hour / 72 hours, Minimum / Max / Average voltage the latest / 1 hour / 24 hours / 72 hours, Minimum / Max / Average voltage the latest 1 hour / 72 hours, Possibility to set alarm levels

Tamper switch

Yes

Lockable enclosure

Yes, two keys included.

Normal dlivery time

Guarantee period

2 years

Warranty conditions 5 year warranty

Average load shall not exceed 80 % of power supply's rated capacity-, Battery backup shall be used together with UPLUS 10+ Design Life batteries., Surrounding temperature shall not exceed 32°C., The fan shall be cleaned annually and replaced if needed.

Certified in accordance with

Certificate number (SBSC)

20-117

Product meets requirements in accordance with

CE directive in accordance with:765/2008, EMC Directive 2014/30EU, Emission: EN61000-6-:2001, EN55022:1998:-A1:2000, A2:2003 Class B, EN61000-3-2:2001, Immunity: EN61000-6-2:2005, EN61000-4-2, -3, 4, -5, -6, -11. SS-EN 50 130-4:2011 Edition 2 & SSF1014 Alarm class 1-2 (Burgler alarm), Low voltage directive: 2014/35/EU

Producer

Milleteknik AB

Country of origin

Not

All specifications subject to change in event of product changes or incorrect data
